NEMA 3R Standard Pump Panels                  All Part Numbers are UL Listed.

VOLTAGE 3PH 50-60HZ	MAX HP	NEMA SIZE	DISC SW	FUSE A	CONT A	OL RLY A	SCCR KA	ENCLOSURE SIZE	PART NUMBER	LIST PRICE
200 - 240	1.5	00	30 J	10	9	4 - 6	65	20"H x 16"W x 6"D	SPP00-220-6	$885.00
440 - 480	2	00	30 J	10	9	2.5 - 4	65	20"H x 16"W x 6"D	SPP00-460-4	$885.00
200 - 240	3	0	30 J	20	18	7 - 10	65	20"H x 16"W x 6"D	SPP0-220-10	$900.00
440 - 480	5	0	30 J	20	18	5 - 8	65	20"H x 16"W x 6"D	SPP0-460-8	$900.00
200 - 240	7.5	1	30 J	30	32	18 - 25	65	20"H x 16"W x 6"D	SPP1-220-25	$920.00
440 - 480	10	1	30 J	30	32	12 - 18	65	20"H x 16"W x 6"D	SPP1-460-18	$920.00
200 - 240	15	2	60 J	60	50	34 - 50	100	24"H x 20"W x 8"D	SPP2-220-50	$1,350.00
440 - 480	25	2	60 J	60	50	24 - 36	100	24"H x 20"W x 8"D	SPP2-460-36	$1,350.00
200 - 240	30	3	100 J	100	85	63 - 85	100	30"H x 24"W x 8"D	SPP3-220-85	$1,695.00
440 - 480	50	3	100 J	100	85	45 - 65	100	30"H x 24"W x 8"D	SPP3-460-65	$1,695.00
200 - 240	50	4	200	CB	150	100 - 150	100	36"H x 24"W x 12"D	SPP4-220-150	$2,600.00
440 - 480	100	4	200	CB	150	85 - 125	65	36"H x 24"W x 12"D	SPP4-460-125	$2,600.00
200 - 240	100	5	400	CB	300	220 - 300	100	48"H x 24"W x 12"D	SPP5-220-300	CF
440 - 480	200	5	400	CB	300	160 - 240	65	48"H x 24"W x 12"D	SPP5-460-240	CF

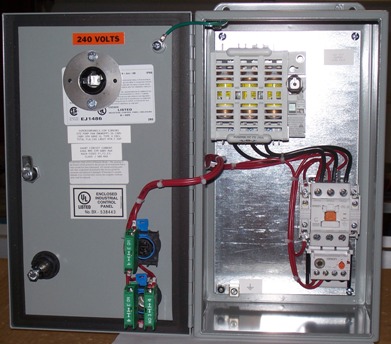

NEMA 3R Gray Painted Galvanized Steel Enclosure with Gasketed Door, Pad-Lockable Latch, Mounting Flanges

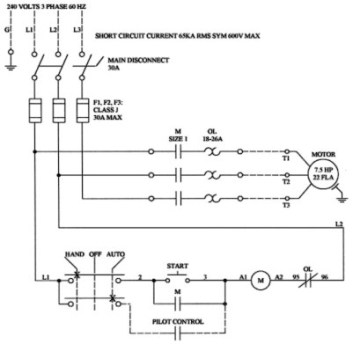

Class J Fused Main Disconnect Switch Rotary Operation Service Entrance Rated

Enclosure Door Mounted Main Disconnect Handle, Pad-Lockable and Defeatable

Class J Branch Circuit Fuses Dual-Element Time-Delay Current-Limiting

NEMA Rated Full Voltage Magnetic Starter with Adjustable Class 10 Trip Thermal Overload Relay

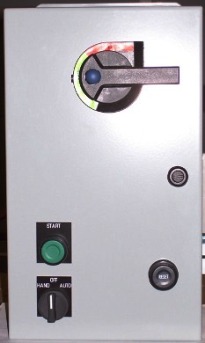

Enclosure Door Mounted Hand-Off-Auto Selector Switch, Start Push Button, Overload Reset Push Button

5-Year Warranty

Factory Modifications Available
