    Heavy-Duty Portable Pump Control Boxes

       For Dewatering, Stand-By, Temporary, Sewage Bypass, Mining, Tunnel Boring, Contractor Pumping Applications

       Manual Control with Standard Cast Aluminum IP65 Watertight Enclosure:

                 MMS 25 Amp 600 Volts Max 7.5 HP @ 200-240VAC 3~, 15 HP @ 480VAC 3~

                 Provides Motor Disconnect, Short Circuit and Overload Protection

                 Rotary Operator Handle with Visual On-Off-Trip Indication, Lockable in Off Position

                 Options include Cable Grip Hubs, Under Voltage Trip Module, Motor High Temp Trip

       Manual Control with Standard Molded ABS Plastic IP65 Watertight Enclosure:

                 Manual Self-Protected Combination Motor Controller up to 65KA @ 480VAC

                 32 Amp 600 Volts Max 10 HP @ 200-240VAC 3~, 20 HP @ 480VAC 3~

                 Provides Motor Branch Circuit Protection, Disconnect, Short Circuit and Overload Protection

                 Rotary Operator Handle with Visual On-Off-Trip Indication, Lockable in Off Position

                 Options include Cable Grip Hubs, Under Voltage Trip Module, Wiring for Single-Phase Motor

                 Stock Product for Same Day Shipment

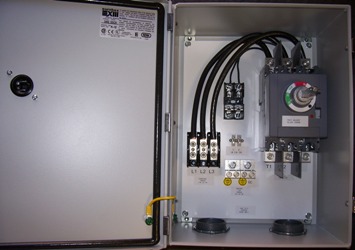

       Manual or Automatic Custom Control with NEMA Enclosure:

                 0.16-100 Amp Manual Self-Protected Combination Motor Controller up to 65KA @ 480VAC

                 NEMA Size 3, 4, 5 Starters, Circuit Breaker Combination Starters, Pump Panels

                 Provide Motor Disconnect, Short Circuit and Overload Protection

                 Rotary Operator Handles with Visual On-Off-Trip Indication, Lockable in Off Position

                 Optional Type 3R, 4, 12 Painted Steel, Type 4X Stainless Steel, and Type 4X Polycarbonate Enclosures

                 Optional Automatic Liquid Level Controls and Alarms

                 Optional Pilot Lights, Push Buttons, and Selector Switches

                 Optional Motor High Temp Trip, Motor "Seal Fail" Moisture Detector, Under Voltage Trip, Automatic Restart

                 Optional Cable Grip Hubs, Cable Clamps, Carry Handles, Lifting Eyes, Floor Stands

                 Optional Single-Phase Motor Start Kits including Start Capacitors, Run Capacitors, Potential Relays, Discharge Resistors
