NEMA 4X Duplex Single Phase Pump Control Panel
NEMA 4X Industrial Polycarbonate Single Door Wall Mount Enclosure
Main Power Supply and Ground Terminals
Two Pump Motor Protector Disconnects, Two Pump Motor Contactors
Two Pump Motor Start Capacitors, Run Capacitors, Start Relays, and Aux Contactors
Control circuit fuse, Duplex alternating relay, 4-float switch automatic control circuit

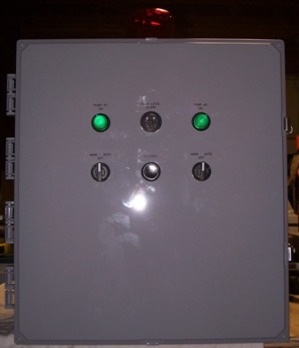

22mm NEMA 4X pilot devices mounted on enclosure door
LED On pilot lights, Hand-Off-Auto selector switches, Silence push button
High Level Alarm Buzzer NEMA 4X with Silence Relay
High Level Alarm Beacon NEMA 4X Red Lexan 40W with Flasher
High Level Alarm Contact for use by Remote Monitoring Equipment
Terminal Blocks for Pump Motor and Float Switch field wiring connections
UL508A Listed
