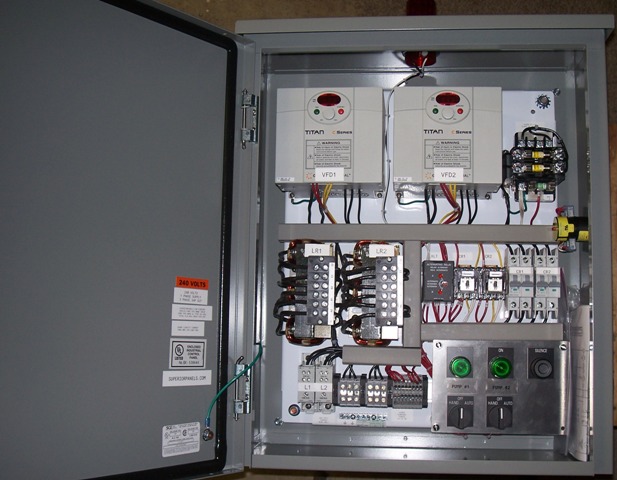

NEMA 3R Duplex Inverter Pump Control Panel
For use with 240 Volt Single Phase Commercial Power Supply
For Operation of two 3 HP 240 Volt Three Phase Submersible Pump Motors
Gray Powder Coated Steel Enclosure with Gasketed Pad-Lockable Door
Main Power Supply Lugs and Ground Bar
Two Pump Circuit Breakers 2 Pole 25 Amp
Two Input Line Reactors, Two Inverter Pump Motor Drives
Control circuit transformer 100VA with primary and secondary fusing
Duplex alternating relay, 4-float switch automatic control circuit
22mm pilot devices mounted inner sub panel
Pump On pilot lights, Hand-Off-Auto selector switches
High Level Alarm Buzzer with Silence push button circuit
High Level Alarm Beacon
Terminal Blocks for Pump Motor and Float Switch field connections
UL508A Listed
