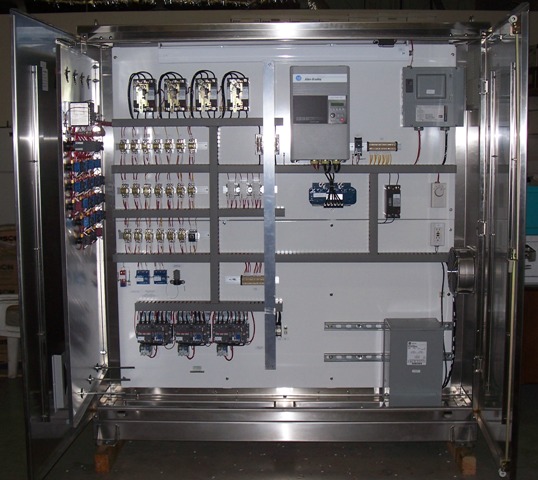

NEMA 3R Triplex Submersible Pump Control Panel with Lead Pump VFD
For use with 3 ea 25 HP dry-pit submersible pump motors 480 volts 3 phase
Lead Pump VFD with 3-Position Lead Pump selector switch for variable speed
operation of lead pump with full-speed lag pump and 2nd lag pump operation if required
NEMA size 2 electrically and mechanically interlocked pump motor starters with overload
Intrinsically Safe submersible liquid level transducer controller with redundant float switch control

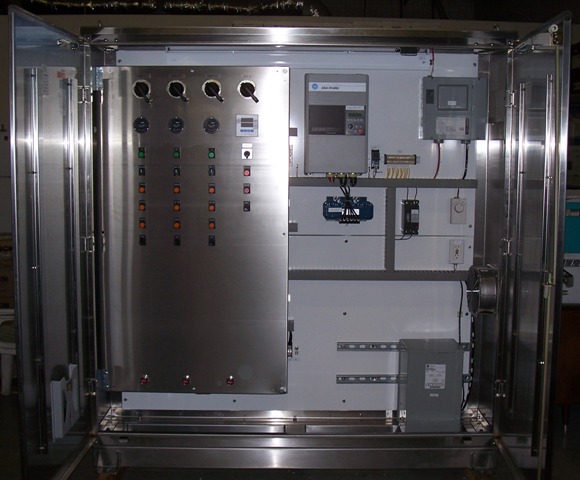

NEMA 3R 304 stainless steel free-standing double door enclosure with dead-front inner panel door
Two-wire alarm contacts and power supply for field mounted SCADA unit
